AllFocusTM VAI Image Gallery - Ring #1

Images of a diamond ring, 21 mm in length, were acquired with a Canon 40D camera and Canon EF 100mm f/2.8 USM Macro Lens.  The camera was triggered by remote release.  Illumination was provided by a small halogen lamp directed at the ring at a vertical angle of ~45 deg.  The stack was formed by varying the horizontal direction of illumination of the ring.  ~270 degrees were covered by 17 images with ~16 deg. increment.  Aperture = 10, shutter speed = 1/6, ISO = 100, white balance tungsten.  Z-stack was processed with AllFocus V1.06.

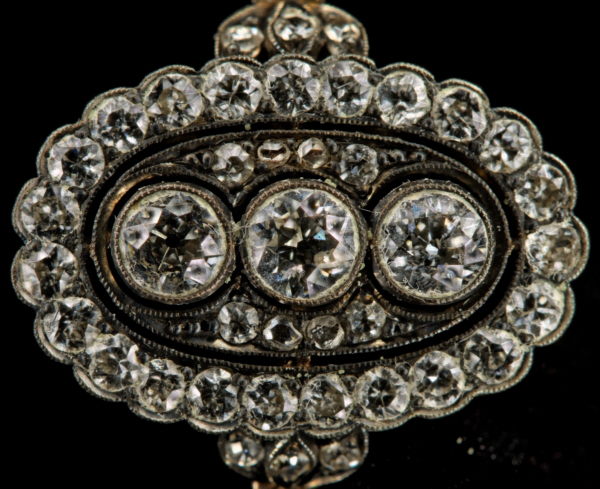

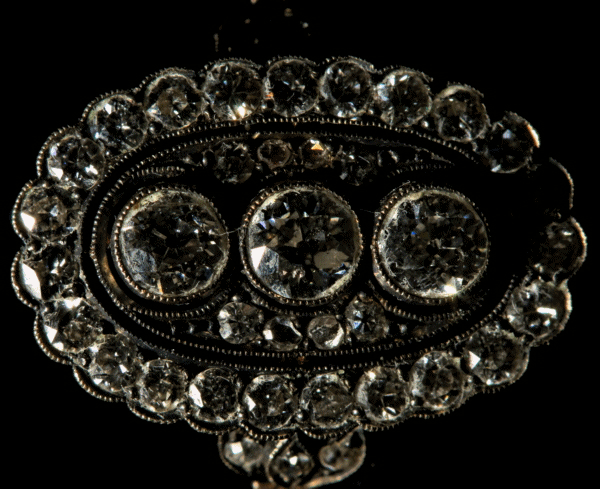

First image is the Z-stack animation, second image is the Merged Image produced by AllFocus.
