AllFocusTM VAI Image Gallery - Coin #2
Images of a silver dollar, 40 mm in diameter, were acquired with a Canon 40D camera and Canon EF 100mm f/2.8 USM Macro Lens. The camera was triggered by remote release. Illumination was provided by a small halogen lamp ~10 cm high at a vertical angle of ~60 deg. The stack was formed by varying the direction of illumination of the coin. 360 degrees were covered by 27 images with ~13 deg. increment. Aperture = 11, shutter speed = 1/6, ISO = 100, white balance tungsten. Z-stack was processed with AllFocus V1.00B.

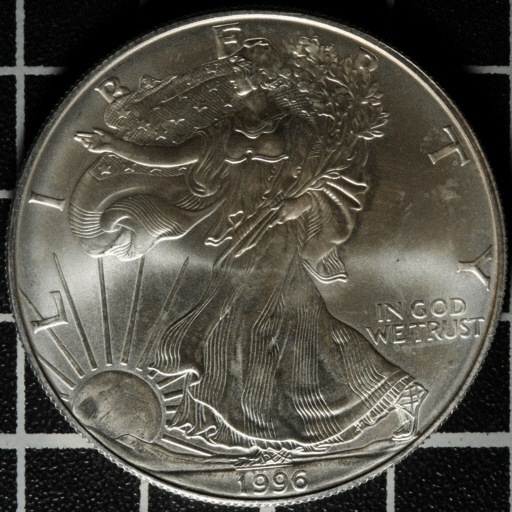

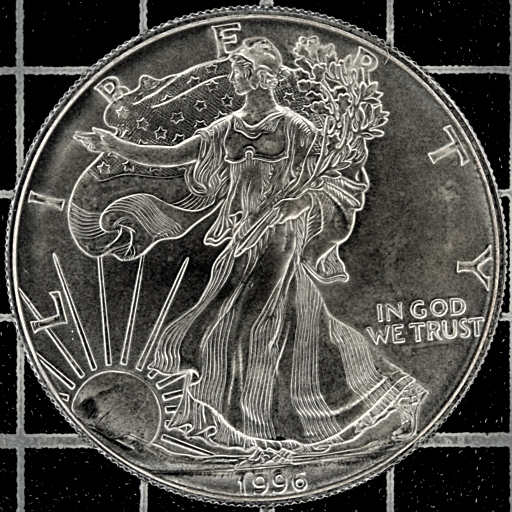

First image is the Z-stack animation, second image is the Merged Image produced by AllFocus.
