Focus Drive with Integrated Controller

Focus Drive is a microscope attachment that provides high resolution movement of fine focus by driving it with a step motor and at the same time retains manual movement of the coarse focus.

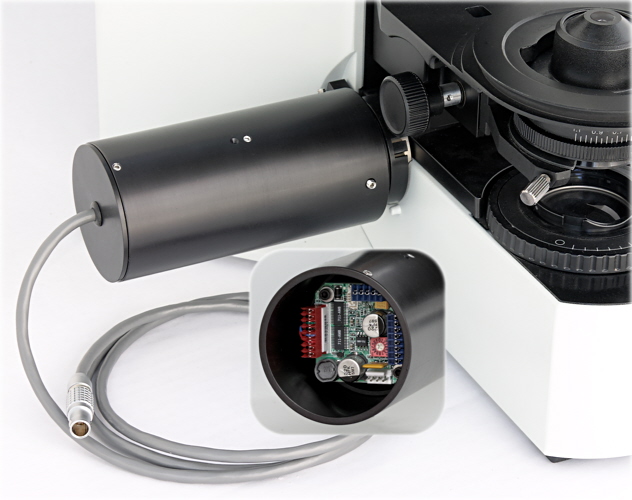

The Focus Drive with Integrated Controller consists of a step motor connected directly to the fine focus shaft of the microscope via a flexible coupling, of a motor controller that drives the motor, and of an adapter that fits over the coarse focus knob of the microscope. The use of a high torsion stiffness flexible coupling ensures virtually no backlash in the drive while allowing easy installation by the end user.

This Focus Drive does not need any additional control units; it connects directly to the computer serial port via a cable with built-in converter. Alternatively, in desktop computers a bracket with converter can be installed in the computer case instead of external converter box and external power supply. In this case power is taken from the computer power supply.

The innovative design of this focus drive provides cost saving, requires less desk space, and reduces cable clutter.

Specifications

Range of travel Entire vertical range of the microscope
Minimal step size 0.001 μm
Backlash in the drive 0.125 μm (Not to confuse with backlash in the microscope focus system)
Mounting No modification of the microscope is required
Motor 0.8A/phase, 400 steps/rev.
Controller Microstepping (up to 1/256 of a step) motion controller and driver EZHR17EN from AllMotion
Computer Interface Serial RS232 (or USB with USB-to-serial converter)
Control Software LiftTool, ScopeTool V4.1 (Z axis) or direct control through serial port
Supported microscopes

Olympus: BH-2, BX-40/60, BX-51, AX-70.

Nikon: Optiphot-1 and 2; Eclipse 400/600, 800; 50i, 80i; TE 200/300, 2000.

Leica: DML, DMR, DM 4000/5000.

Zeiss: AxioSkop 1 and 2; AxioPlan/Phot 1 and 2.

Motic: BA400/450; AE30/31.

For mounting instructions see: http://www.tofrainc.net/focus-drive-integrated.htm

Ordering Information

Part number

Description

Price (US$)

Buy
120-01 Focus Drive with Integrated Controller, Converter Box, and Power Supply (RS232) 1510.
Microscope Model
120-02 Focus Drive with Integrated Controller and Converter Bracket (RS232) 1450.
Microscope Model
120-03 Focus Drive with Integrated Controller, Converter Box, and Power Supply (USB) 1560.
Microscope Model
120-04 Focus Drive with Integrated Controller and Converter Bracket (USB) 1500.
Microscope Model



Specifications and prices are subject to change without notice. Delivery 4-6 weeks ARO.
